Romex Wire Guide: Choosing the Best Electrical Cable for Your Home
Looking to wire your home? Romex wire, or NM-B (non-metallic sheathed cable), is the go-to choice. Ideal for light fixtures, outlets, and circuits, Romex is key to efficient home electrical systems. This article covers everything you need to know about Romex wire, from its components to its uses and selecting the right type for your project.
Key Takeaways
Romex wire (NM-B) is preferred for residential wiring due to its safety, versatility, and ease of installation, suitable for various applications like lighting and outlets.
The wire consists of protective sheathing, insulated conductors, and flexible copper conductors, enhancing durability, safety, and electrical performance.
Crawford Electric Supply provides a variety of Romex wire options along with expert support, ensuring compliance with local codes and efficient project completion.
Understanding Romex Wire
Romex wire, technically known as NM-B (non-metallic sheathed cable), is the go-to solution for residential wiring needs. It’s commonly used for light fixtures, electrical outlets, and circuit wiring in homes. What sets Romex apart is its suitability for dry, concealed areas, making it ideal for installations within walls or ceilings. It can also be exposed in attics and basements, offering flexibility in various home settings.
The defining feature of Romex wire is its nonmetallic sheath, designed to protect the internal wires from physical damage and environmental factors. This sheathing not only enhances safety but also contributes to a neat and organized installation, as Romex can be easily concealed within structural elements of a home. This makes it an excellent choice for homeowners looking to maintain a clean aesthetic while ensuring robust electrical performance.
Romex wiring is known for its reliability and ease of use, making it a staple in residential electrical work. A deeper knowledge of Romex wire allows you to value its contribution to creating safe and efficient electrical systems in your home and to run romex effectively.

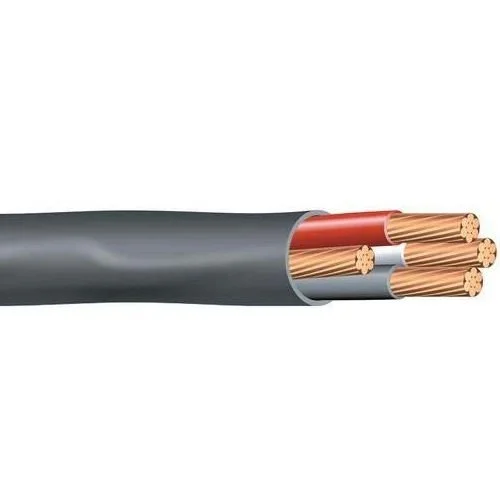

Components of Romex Wire
Romex wire is composed of three main components: sheathing, insulation, and conductors. Each of these elements plays a vital role in ensuring the wire’s safety, durability, and functionality.
A closer examination of these components reveals their specific functions.
Sheathing
The sheathing of Romex wire is the outermost layer, providing essential protection to the internal conductors. This protective layer is typically available in colors such as yellow or white, which helps in identifying the wire gauge quickly and efficiently. The color-coded jackets offered by Crawford Electric Supply make it even easier to select the right wire for your specific needs.
The nonmetallic sheath safeguards the wire against physical damage and environment factors, ensuring functionality even in exposed areas like attics or basements, as well as in dry locations. It also contributes to a clean, professional appearance when concealed within protected bare walls or ceilings, thanks to its coating. The nonmetallic sheathed cable and metal clad cable are ideal for these applications.
Insulation
Inside the sheathing, Romex wire features insulated conductors, typically made from polyvinyl chloride (PVC). This material is chosen for its excellent insulating properties and resistance to environmental factors, ensuring that the electrical system remains safe and reliable. PVC insulation also enhances the wire’s longevity, making it a durable choice for residential wiring systems.
The insulation is color-coded, with black, white, and red colors distinguishing the conductors’ roles in the electrical circuit. Color-coding simplifies installation, enabling electricians to quickly and accurately identify each conductor’s purpose for a correct and safe setup.
Conductors
The conductors in Romex wiring are primarily made from soft copper, known for its excellent conductivity and flexibility. This high conductivity ensures efficient electrical flow, which is crucial for maintaining the performance of your electrical system. The flexibility of copper conductors also makes installation easier, allowing them to be maneuvered through various spaces without much hassle.
Copper conductors ensure that Romex wire remains a reliable and efficient choice for residential wiring, serving as a conduit for electrical flow. Its combination of conductivity and flexibility makes it a preferred option for electricians and homeowners alike.
Common Uses of Romex Wire
Romex wire is incredibly versatile and is often the preferred choice for residential wiring applications. It is commonly used to supply power to lighting fixtures and electrical outlets throughout homes. This widespread use is due to its ability to handle various electrical needs efficiently and safely.
In addition to lighting and outlets, Romex wiring is also used to connect power to larger appliances such as air conditioners and water heaters. Its versatility makes it suitable for a range of applications, from small household items to more significant electrical equipment. This adaptability is a significant advantage, allowing homeowners to use a single type of wire for multiple purposes.
In single-family houses and duplexes, Romex is often the go-to choice for running electrical circuits to various devices and appliances. Specific applications include GFCI outlets, lights, and wall outlets, providing a comprehensive solution for residential electrical needs. This makes Romex wire a reliable and efficient option for any house wiring project.
Selecting the Right Gauge
Choosing the correct wire gauge is essential for ensuring the safety and efficiency of your electrical system. Romex wire comes in various sizes, commonly ranging from 14 to 2 AWG, each suitable for different electrical needs. Choosing the right gauge based on the circuit’s amperage requirements prevents overheating and potential fire hazards.

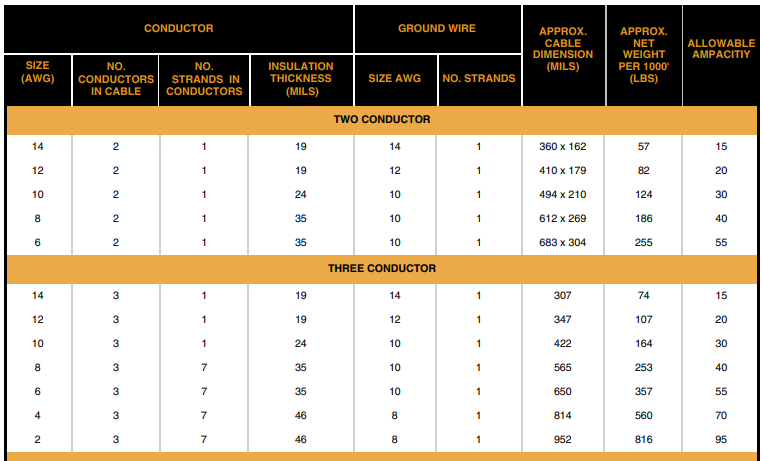

An electrical wire size chart helps identify the correct wire gauge for your specific application. Adhering to the maximum safe carrying capacity of each gauge ensures the electrical system functions safely. Attention to detail significantly enhances the performance and safety of your electrical installations.
Detailed specifications from Crawford Electric Supply help you make an informed choice. Competitive price and extensive options ensure you find the right wire to purchase at a cheaper rate without breaking the bank.
Benefits of Using Romex Wire
One of the primary benefits of using Romex wire is its straightforward installation process. Electricians find it easy to work with, which allows for quicker project completion and reduces labor costs. This ease of use makes Romex a preferred choice for both professionals and DIY enthusiasts.
The durable outer jacket of Romex wiring provides excellent protection against physical damage, reducing the risk of electrical contact and enhancing safety. This protective layer ensures that the internal conductors remain intact and functional, even in challenging environments.
Romex wiring is also considered an economical option compared to other electrical wiring solutions. Its combination of durability, ease of installation, and cost-effectiveness makes it a smart choice for any residential wiring project.
Limitations and Restrictions
While Romex wire is highly versatile, it does have its limitations and restrictions. Local codes and regulations in some communities may prohibit its use, so it’s essential to verify the local guidelines before proceeding with installation. Additionally, the National Electrical Code prohibits the use of Romex for service entrance applications.
Romex wiring is not suitable for wet or damp locations, including outdoor applications unless specifically rated for such use. It cannot be embedded within concrete slabs, as these areas are classified as wet locations. These restrictions are in place to ensure the safety and functionality of the electrical system.
In some cities, like Chicago, the use of Romex is heavily restricted due to historical safety concerns, and obtaining permission for its use can be challenging. Being aware of these limitations can help you make better decisions when planning your electrical projects in houses.
Top Brands of Romex Wire
When it comes to Romex wire, quality and reliability are paramount. Leading brands like Southwire and Cerrowire are known for their high-quality wire and cable products that meet stringent safety and performance standards. These brands are trusted by electricians and homeowners alike for their consistent quality and reliability, including their cables.
Crawford Electric Supply stocks a diverse range of these top brand products in the electrical industry, ensuring that you have access to the best products on the market. Choosing reputable brands ensures the safety and efficiency of your residential wiring projects, including branch circuits.
Buying Romex Wire from Crawford Electric Supply
Crawford Electric Supply offers a variety of purchasing options for Romex wire, including standard spool lengths and custom-cut lengths based on your project requirements. Located at 1918 N Cherry St in Knoxville, TN, Crawford Electric Supply is a trusted wholesale source for all Romex applications.
The company provides contractor pricing and bulk-buy discounts, making it an economical choice for large projects. With a wide range of NM-B wire sizes available, you can find the perfect fit for your residential wiring needs and b cable.
Expert Support and Services
Crawford Electric Supply offers reliable inventory, better pricing, and technical support for Romex jobs, ensuring that you have everything you need for a successful project. Their experienced staff is knowledgeable about code, ampacity, installation practices, and NEC regulations, providing valuable insights and assistance.
With fast pickup and local delivery options, Crawford Electric Supply helps minimize jobsite delays and enhances efficiency. Their expert support ensures that your electrical projects are completed smoothly and compliantly.
Summary
In summary, Romex wire is a reliable and versatile option for residential wiring projects. Understanding its components, common uses, and the importance of selecting the right gauge can help you make informed decisions and ensure the safety and efficiency of your electrical system.
By choosing top brands and purchasing from trusted suppliers like Crawford Electric Supply, you can access high-quality products and expert support, making your home improvement projects more manageable and successful. Make the smart choice today and ensure your home’s electrical system is in top shape.
Frequently Asked Questions
What is Romex wire commonly used for in homes?
Romex wire is primarily used for lighting fixtures, electrical outlets, and circuit wiring in residential settings, making it essential for various home electrical needs.
Can Romex wire be used in wet or damp environments?
Romex wire should not be used in wet or damp environments, as it is prohibited by the National Electrical Code unless it is specifically rated for such conditions. It's important to choose the appropriate wiring for safety and compliance.
What are the benefits of using PVC insulation in Romex wire?
Using PVC insulation in Romex wire significantly improves safety and durability due to its excellent insulating properties and resistance to environmental factors. This ensures a reliable and long-lasting electrical system for residential applications.
How do I choose the right gauge of Romex wire for my project?
Choosing the right gauge of Romex wire hinges on the amperage requirements of your circuit; consult an electrical wire size chart to ensure safety and efficiency in your project.
Where can I buy Romex wire and get expert support for my projects?
You can buy Romex wire at Crawford Electric Supply, where you'll also find contractor pricing, bulk-buy discounts, and expert support for your projects.
